Core drill Milwaukee MXF DCD150 302C

Core drill  Milwaukee MXF DCD150 0C, drills dry and wet with extreme ease, obtaining the same performance as wire, up to a diameter of 152 mm, thanks to the high power supplied by the battery-powered motor.

• Possibility to choose between 2 speeds to cover a wide range of applications.
• Speed 1: 1600 rpm for holes up to 75 mm diameter, both wet and dry.
• Speed 2: 800 rpm for holes from 76 mm up to 152 mm diameter, both wet and dry.
• Patented AUTOSTOP™ system to ensure user protection, preventing accidental rotation of the tool in the event of loss of control or crown jamming.
• The built-in spirit level guides the user during horizontal application, allowing him to obtain a precise and clean result.
• The pressure indicator allows the user to optimize the drilling speed and not to over-stress the tool.
• The battery charge status indicator allows the user to monitor the remaining energy during each application.
• Wet drilling capability thanks to compatibility with the M18™ SWITCH TANK automatic pre-compression sprayer pump
• 1 ¼″ UNC or ½″ G attachments compatible with the most common chainrings on the market, plate design for quick and easy accessory changes.

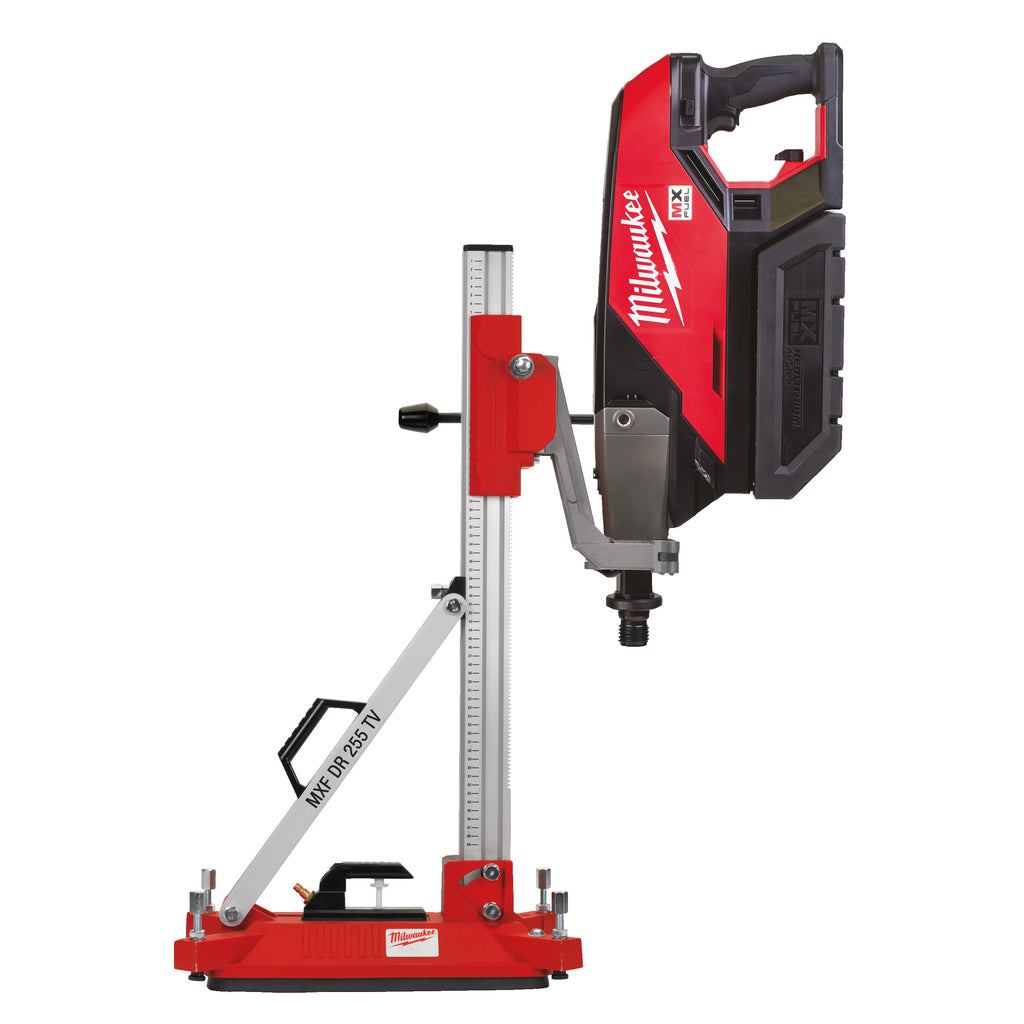

• Core drill column with 60 mm collar MXF DR255 TV available separately (4933472247)
• The MX FUEL™ system takes battery-powered solutions to new heights: performance of petrol, corded or pneumatic solutions, eliminating the dangers associated with emissions, noise, vibration, tripping and complex maintenance.
• The ONE-KEY™ Tracking & Security system offers free cloud-based inventory tracking and management, and also features remote locking capabilities.

TECHNICAL SPECIFICATIONS

• 1 ¼″ Unc + ½″ G connection
• Recommended Battery Mxf Cp203
• Concrete Drilling 1st | 2nd Speed (Mm) 76 - 152/ 25 - 76
• Load Speed 0 - 800/ 0 - 1600
• No-Load Speed (RPM) 0 - 800/ 0 - 1600
• Weight (Without Battery) (Kg) 10.3
• Weight With Battery Pack (Epta) (Kg) 12.4 (Mxf Cp203)
• Uncertainty Sound Power Level (Db(A)) 3
• Uncertainty Sound Pressure Level (Db(A)) 3
• Sound Power Level (Lwa)(Db(A)) 98.8
• Sound Pressure Level (Lpa)(Db(A)) 87.8
• Vibration Uncertainty Drilling (M/S²) 1.5
• Vibration Uncertainty Concrete Drilling (M/S²) 1.5
• Vibration Concrete Drilling (M/S²) 1.83
• Vibration During Drilling (M/S²) 1.83

ACCESSORIES SUPPLIED

• 2 x MXF CP203 Battery Pack
• MXF C Charger
• Briefcase
• Core drill column with 60 mm collar MXF DR255 TV available separately (4933472247)
