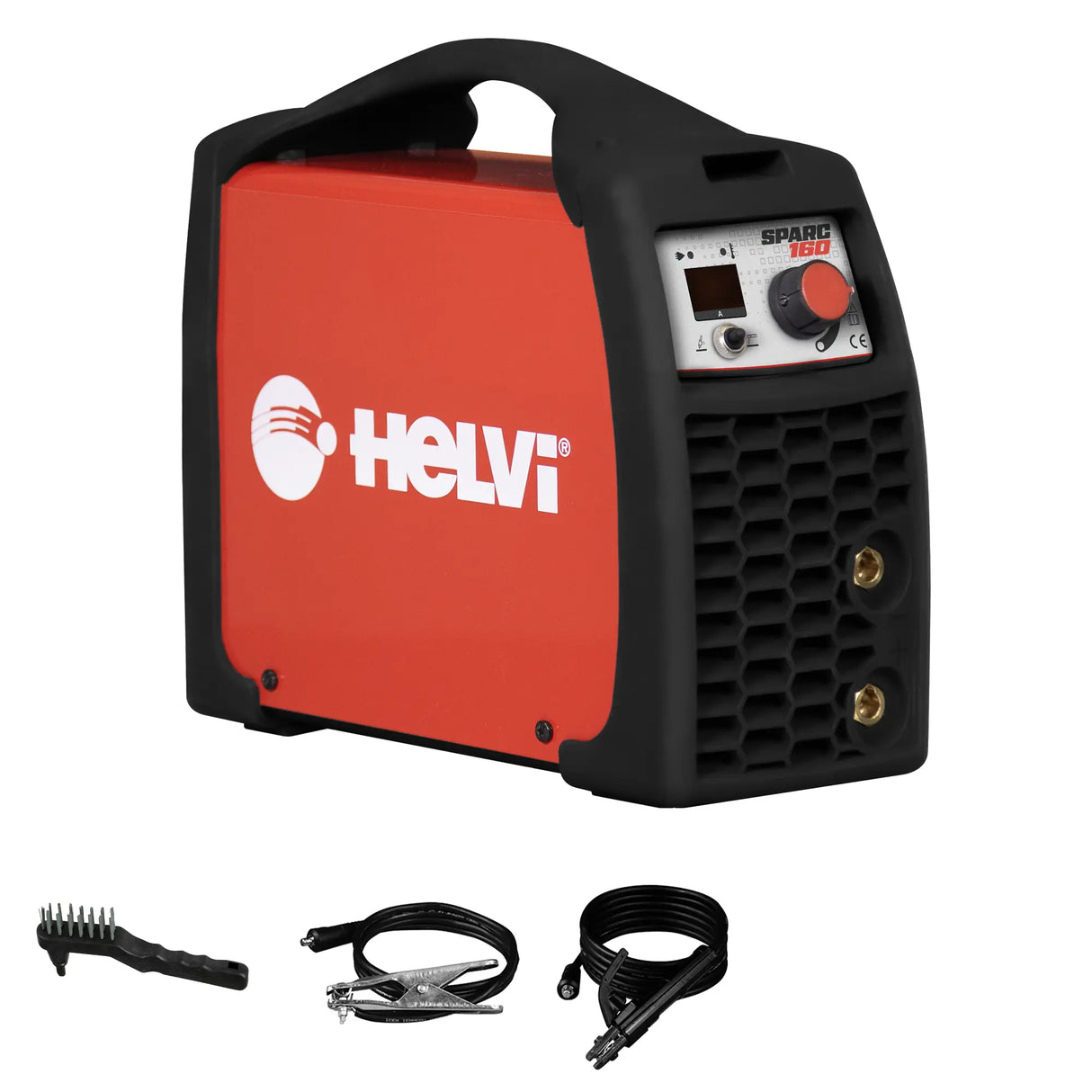

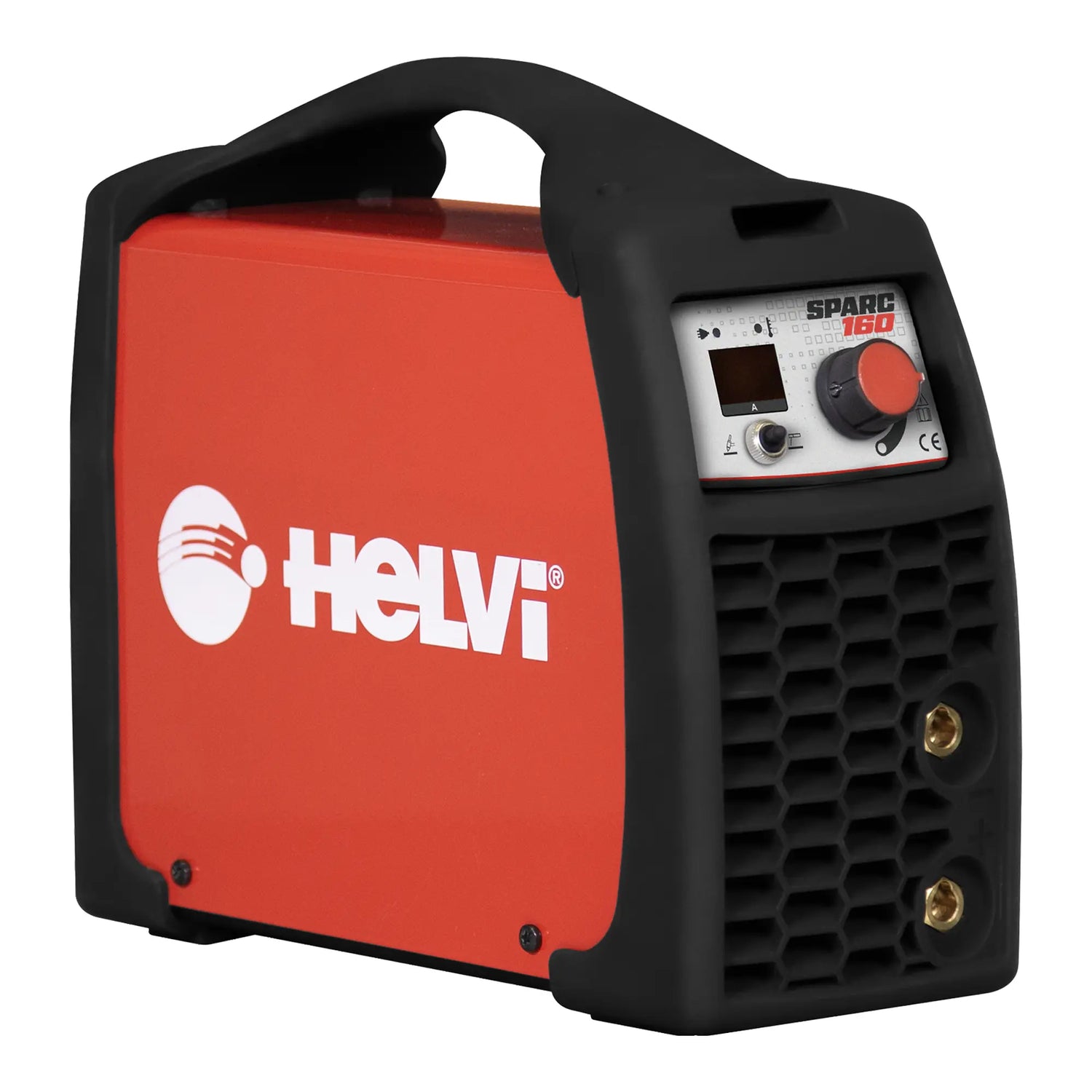

Inverter Helvi Sparx 160

The Inverter Helvi Sparx 120 It is the ideal choice for those looking for a compact, lightweight and high-performance welder, perfect for welding jobs on 6013 and 7018 electrodes.

Inverter Helvi Sparc 120 – Compact, Powerful and Reliable

Thanks to his Maximum power of 4.0 KVA and to the regulation range from 10A to 120A, this inverter guarantees precise and reliable welding for both professional and DIY use.

Weighing only 3.8 kg, it is easy to transport and offers excellent handling. Furthermore, it is equipped with a IP22S protection degree, which makes it resistant to external agents.

✅ Advantages of Inverter Helvi Sparx 120

✔ Power and versatility – Current regulation from 10A to 120A to adapt to different welding needs.

✔ Compatible with various electrodes – Supports 6013 and 7018 with diameters from 1.6mm to 3.25mm.

✔ High working efficiency – Optimized work cycle:

    🔹 120A @ 25%

    🔹 80A @ 60%

    🔹 60A @ 100%

✔ Compact and lightweight – Small size (120 x 300 x 260 mm) and weight of only 3.8 kg for easy transportation.

✔ Reliability guaranteed – Class isolation H and protection IP22S for a long life.

🛠️ Accessories Included

The Cardboard Box Kit includes:

✔ Sparc 120 Generator

✔ Neoprene earth cable (1.6 m – 10 mm² – conn. 25 mm²)

✔ Neoprene welding cable (2.4 m – 10 mm² – 25 mm² connector)

✔ Manual welding mask with glass 75 x 98 mm

✔ Hammer-brush

✔ Cardboard box

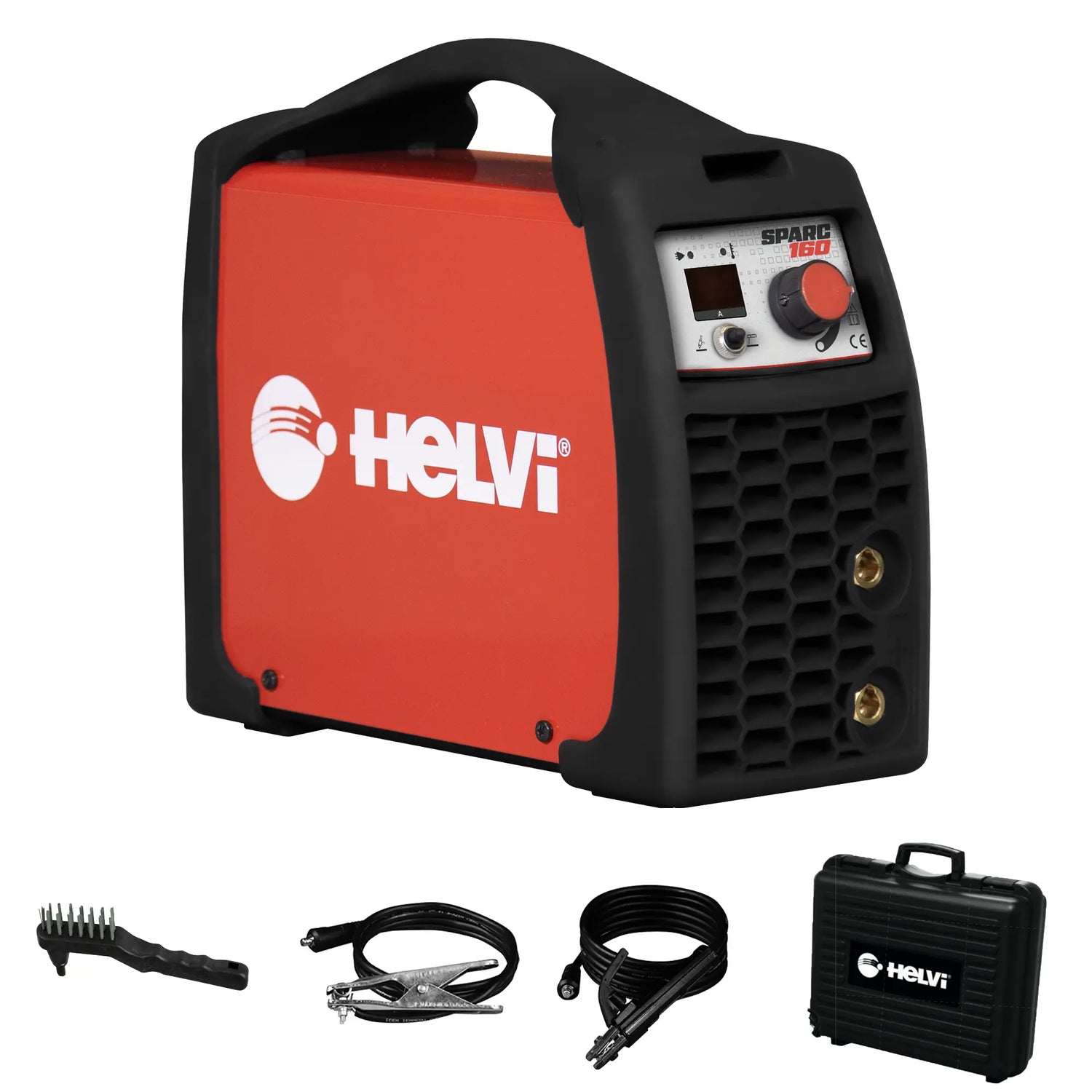

The Suitcase Kit includes:

✔ Sparc 120 Generator

✔ Neoprene earth cable (1.6 m – 10 mm² – conn. 25 mm²)

✔ Neoprene welding cable (2.4 m – 10 mm² – 25 mm² connector)

✔ Manual welding mask with glass 75 x 98 mm

✔ Hammer-brush

✔ Shockproof suitcase for safe transport

📊 Technical Specifications

🔹 Input voltage: 230V ± 10% • 50/60Hz

🔹 Max power: 4.0 KVA

🔹 Open circuit voltage: 60V

🔹 Adjustment range: 10 ÷ 120A

🔹 Duty cycle (40°C):

    ✔ 120A @ 25%

    ✔ 80A @ 60%

    ✔ 60A @ 100%

🔹 Supported electrode diameter: 1.6 ÷ 3.25 mm

🔹 Insulation class: H

🔹 Degree of protection: IP22S

🔹 Dimensions: 120 x 300 x 260 mm

🔹 Weight: 3.8 kg

📍 Where to Buy the Inverter Helvi Sparc 120?

You can buy theInverter Helvi Sparx 120 in the shops EmmetiStore or directly online at EmmetiStore, with fast shipping and secure payments! 🔥
