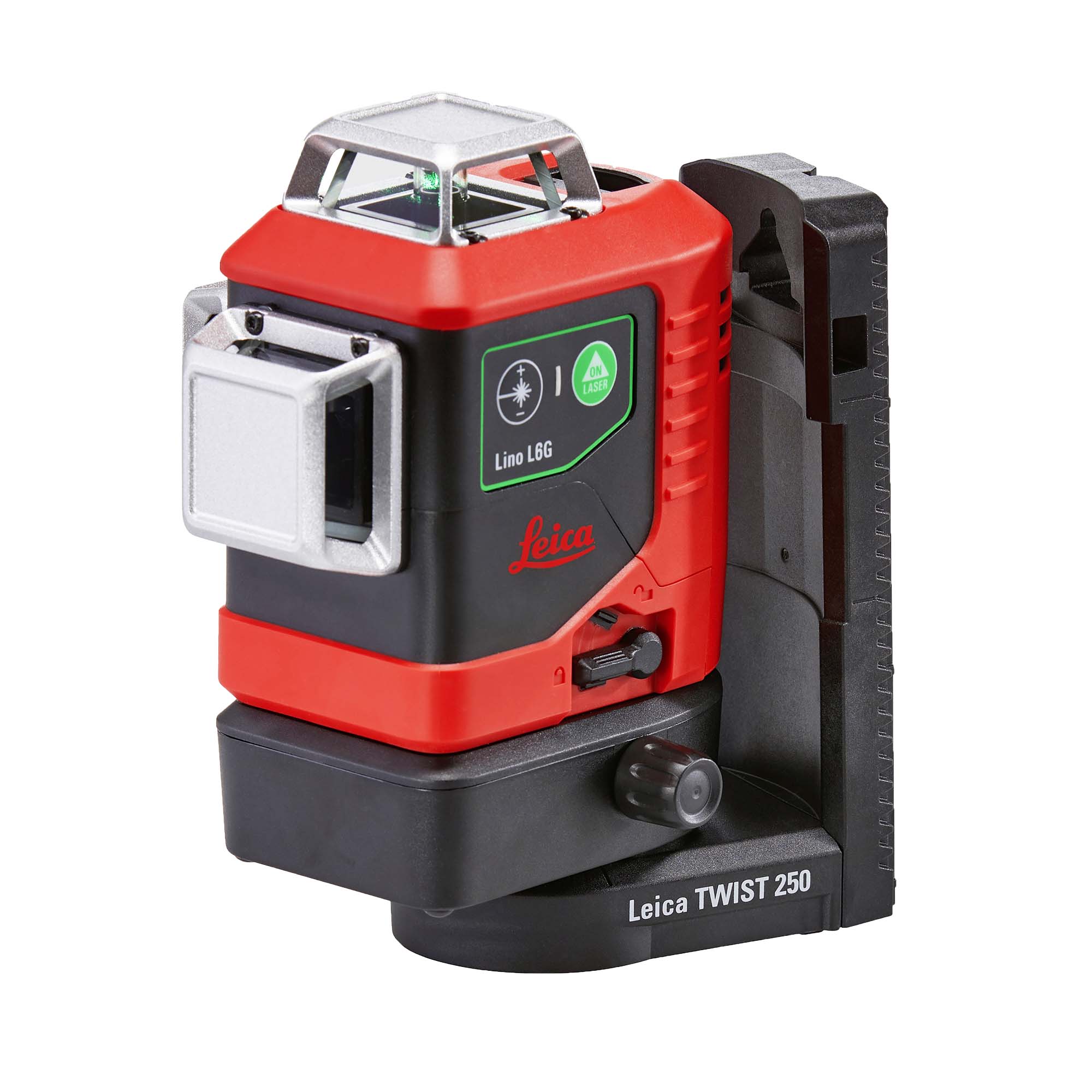

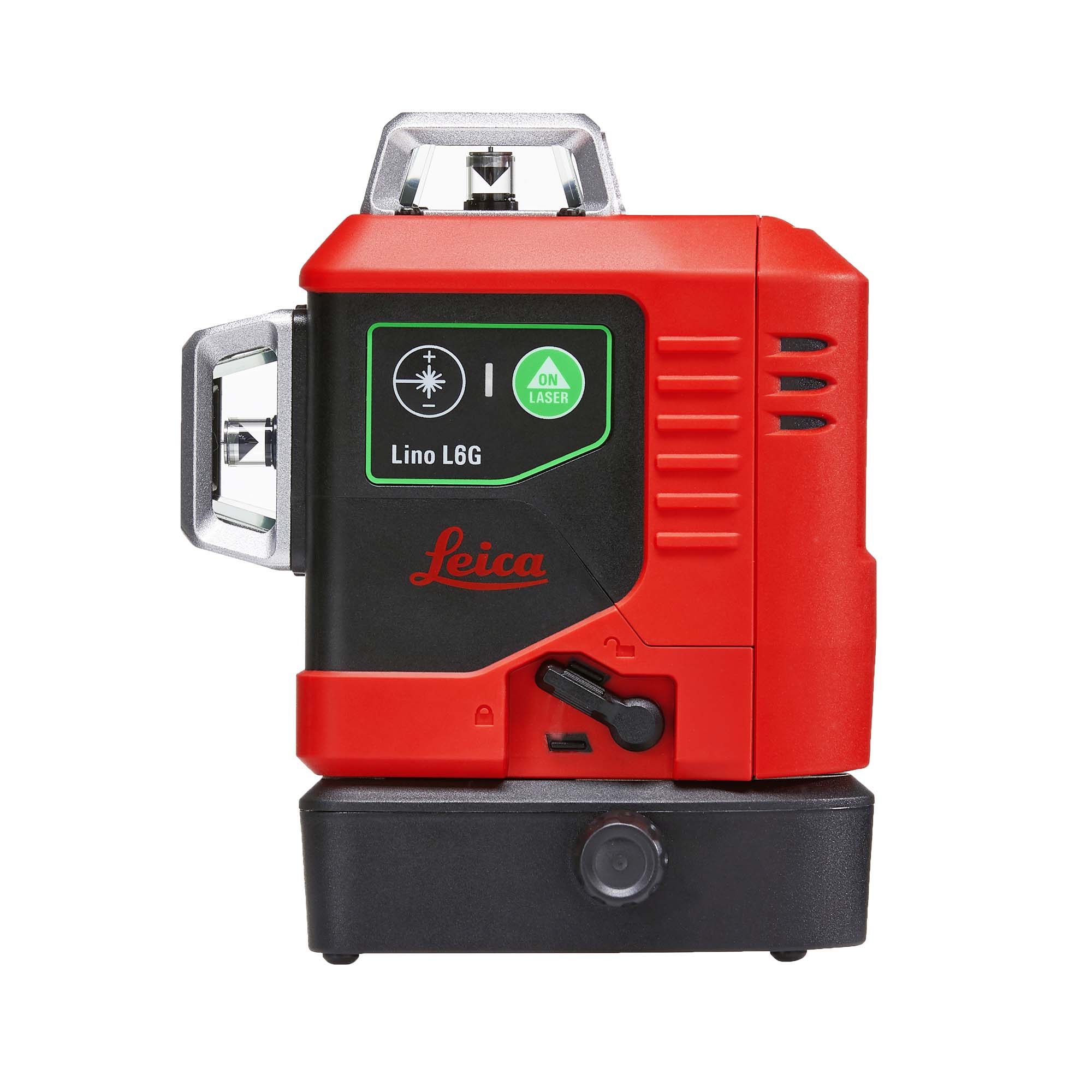

The Laser Level Leica Linen L6Gs-1 has vertical laser lines projected on walls and ceilings can be easily adjusted once the plumb point is set. Thanks to the micrometric screw in the integrated base of the laser, it is possible to adjust the two vertical laser lines by ± 10° while maintaining the position of the plumb point.
Magnetic adapters allow you to position the instrument quickly and with absolute precision.
- 360° alignment with exceptional visibility

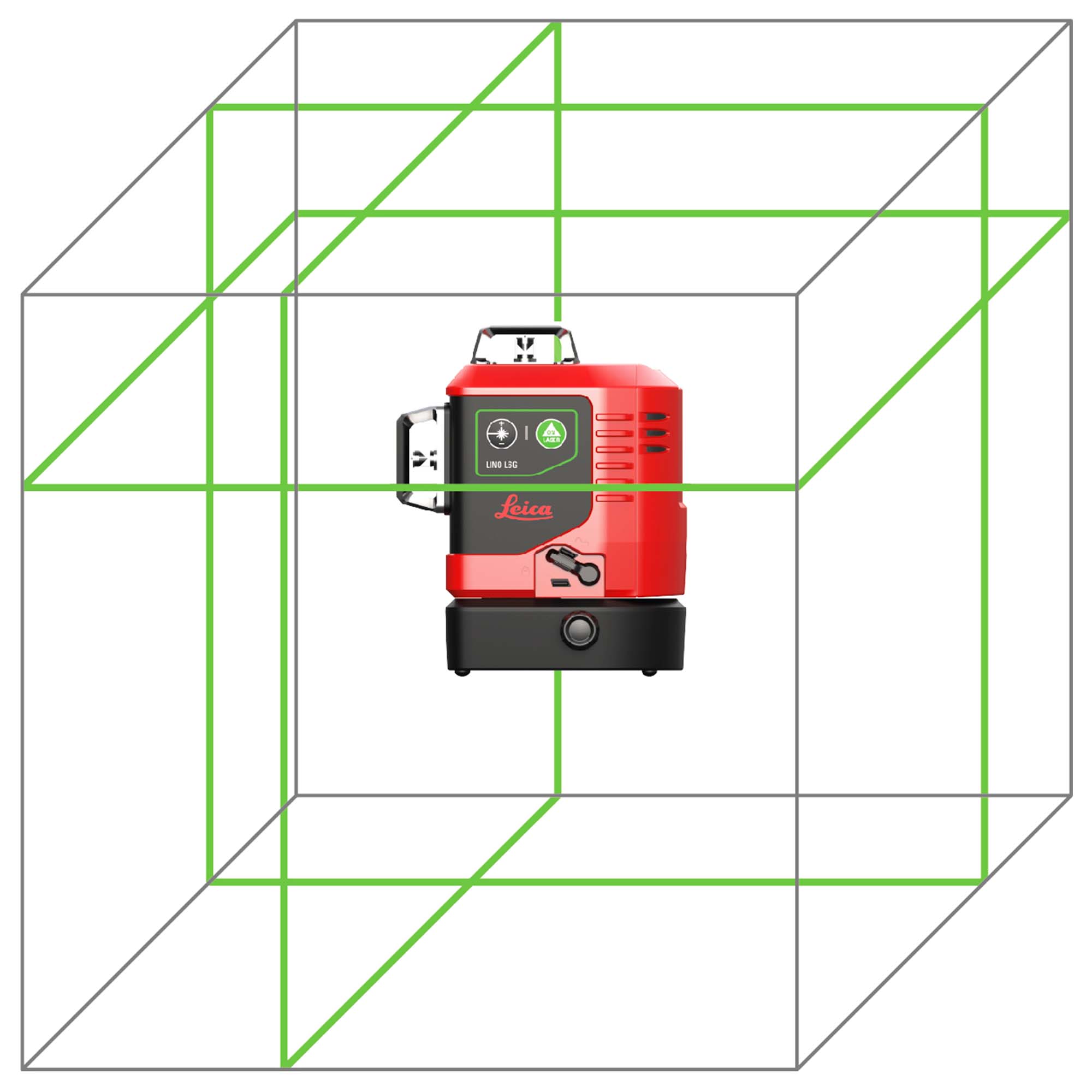

- One horizontal green laser line and two vertical 360° lines
- High visibility thanks to ultra-powerful green laser diodes
- Wide range self-leveling
- Fixed plumb point thanks to the integrated base
- Adjustable intensity of laser lines
- Operating range up to 25 meters
- Powered by lithium-ion batteries for up to 36 hours of operation
- Uninterrupted work thanks to the triple power mode concept
- Smart magnetic adapters for easy positioning
TECHNICAL SPECIFICATIONS
- range up to 25/50 m depending on lighting conditions
- range with RGR200 up to 70/140 m
- Leveling accuracy 0.2mm/m
- Horizontal/vertical line accuracy 0.3mm/m
- Laser line width at 5 m distance < 2 mm
- Protection class IP 54
- weight with batteries 781 g
- Tripod thread 1/4'' (+ 5/8'' with adapter)
- Battery life with alkaline batteries: up to 25 hours (3 beams, 50% power)/
- up to 25 hours (3 beams, 50% power)
- Automatic Pendulum Leveling (lockable)
- Laser 635 nm / class 2 (based on IEC 60825-1)

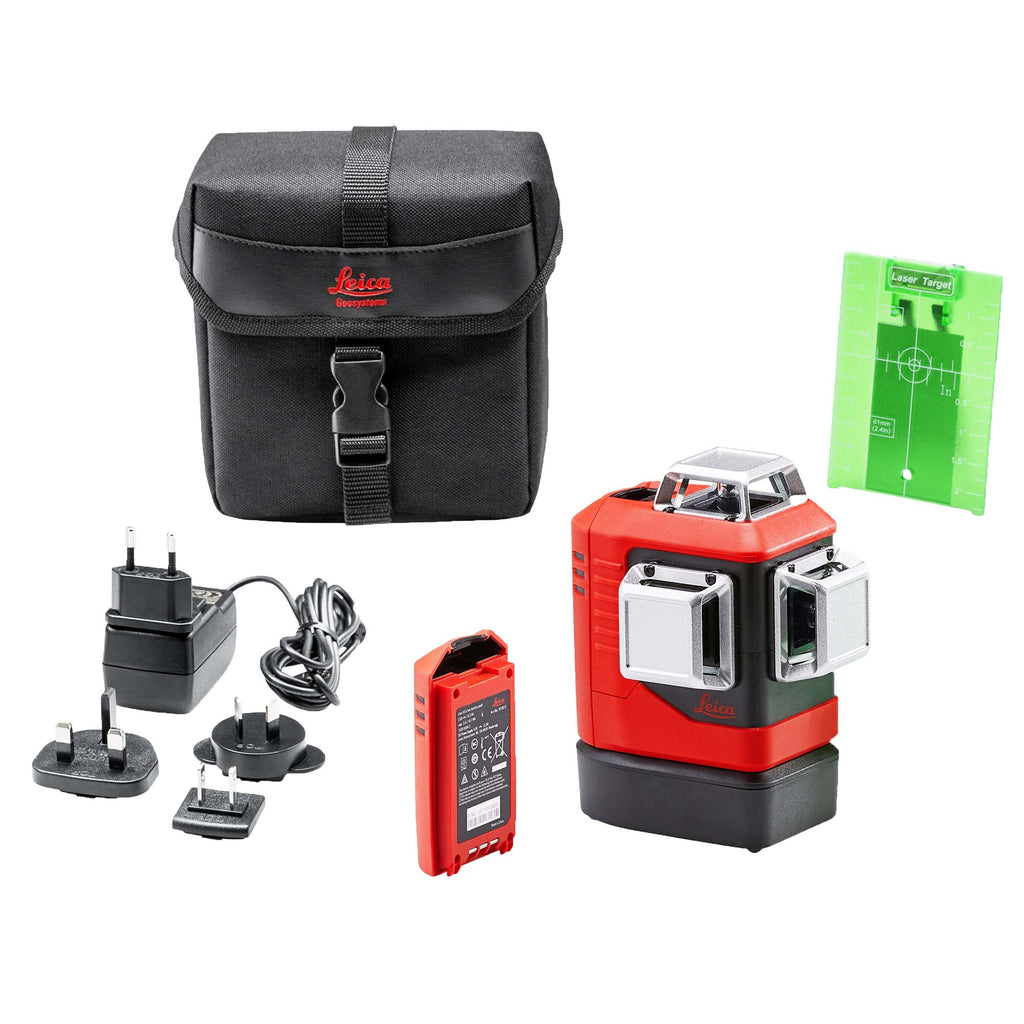

ACCESSORIES SUPPLIED
- Quick Guide
- Soft bag
- Lithium battery
- Signal plate
- Safety instructions
- Calibration certificate
- Certificate of guarantee
